Conveyor Belt Maintenance Tools

Hand Tool Kits

Wire Belt’s new range of hand tool kits, all your tools in one place stored in a durable carry case. These kits are ideal for your maintenance teams to aid installation and maintain your Flat-Flex Belts, keeping your belts running in optimum condition. Each kit contains a comprehensive Flat-Flex Support Guide with detailed maintenance and joining instructions, troubleshooting guide and potential causes of downtime.

Flat-Flex^® 0.90 to 2.35mm Wire Tool Kit Part Number FFKIT-0.90-2.35

A comprehensive tool kit, designed for OEM customers and large end-user sites that utilise the full range of Flat-Flex^®belting. From delicate product transfer to heavy duty fryer applications, this kit provides the engineer with all the tools necessary to ensure a safe and consistent join.

Each kit contains:

Eddie Wire Straightener
Universal Cutting Nippers
Side Cutting Pliers
Needle Nose Pliers
Fine Wire Cutting Pliers

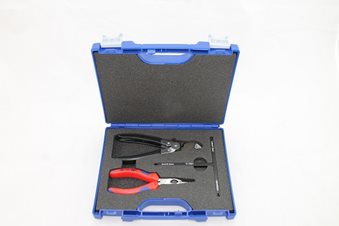

Flat-Flex® 0.90 to 1.27mm Wire Tool Kit Part Number FFKIT-0.90-1.27

A tool kit developed for fine wire applications, such as chocolate enrobing and other confectionery processes. Each tool has been specially selected for robustness and user comfort when working with high tensile music wire. A well-maintained enrober belt will provide safe and consistent operation, whilst preventing product marking through broken and deformed strands.

Each kit contains:

Eddie Wire Straightener
Needle Nose Pliers
Fine Wire Cutting Pliers

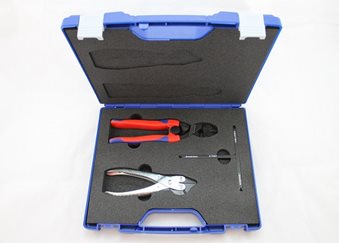

Flat-Flex® 1.27 to 2.35mm Wire Tool Kit Part Number FFKIT-1.27-2.35

A compact tool kit, suitable for medium to large wire diameters common to poultry and sea-food processing applications. The combination of Side Cutting Pliers and Eddie Wire Straightener assists the joining process for heavy gauge wire belts, reducing down-time and increasing reliability.

Each kit contains:

Eddie Wire Straightener
Universal Cutting Nippers
Side Cutting Pliers

Belt Maintenance Tools

Eddie Wire Straighteners Part Number 017007

Essential for joining and maintenance of Flat-Flex Belting

High quality wire straightening tool
Remove distortions in the wire and adjust Z-bends
Perfect for opening and closing C-Cure edge loops
Suitable for wire diameters from 0.90 to 2.35mm

Universal Cutting Nippers Part Number 017008

For cutting all Flat-Flex Belting

Micro-structured cutting edge suitable for cutting all Flat-Flex belting including 4mm wire diameter.
The compound lever design gives good mechanical advantage, enabling high tensile wire to be cut with low handle loads. As a result, operator fatigue in a repetitive situation is greatly reduced.
Gripping surface below the joint suitable for wire diameters from 1.0mm
Multi-component handles with integrated spring return and locking device
Fully heat-treated, chemically blackened jaws.
Manufactured to DIN ISO 5743:2004

Fine Wire Cutting Pliers Part Number 017004

For cutting fine wire Flat-Flex wire belting

Suitable for use with high tensile music wire belts
Slim profile head for cutting tightly-pitched belts common to chocolate enrobing processes
Leverage reduces force expenditure by 40%
Spring return
Manufactured to DIN ISO 5747:1995

Side Cutting Pliers Part Number 017003

For cutting and joining Flat-Flex Belting

The jaws remain parallel throughout their range of movement giving a positive grip.
The jaws are knurled with a single longitudinal V-slot. Wire can be fed through the throat of the plier from either end and held firmly over the length of the jaws.
Spring return and knurled jaws.
Anti-rust finish with bright nickel plated handles and fully heat treated chemically blackened jaws and cutter.
Good mechanical advantage on the cutter allows high tensile wire to be cut with low handle loads. The position of the cutter on the side of the plier ensures that the tool can be used where access is limited.

Micro Shear Wire Cutters Part Number 017006

For cutting stainless steel Flat-Flex belting

The self sharpening design gives good mechanical advantage enabling wire to be cut with no loss of sharpness.
Compact design with spring return, heat treated and chemically blackened.
Suitable for wire diameters up to 1.27mm.

EZSplice Multi-Head Profiling Pliers Part Number 017009

For use with EZSplice joining strands

Individual heads for each pitch and wire combination within the EZSplice range
Crimps joining strand to ensure a secure belt join with a flat carrying surface
Prevents “over-crimping”

CompactGrid Pliers Set Part Number 017013

For splicing CompactGrid Belting

Custom designed CompactGrid Tool kit to make splicing as simple and easy as possible
Each tool kit contains two CG-Splice Levers, and one set of CG-Splice Pliers.
The tools are designed to help align and crimp the belt into place.
The tools provides a perfectly shaped crimp, making the splice joint complete without damaging surrounding wire strands or over-crimping the splice strand.
